Dynalab Wind Speed Sensor

Name: Dynalab Wind Speed Sensor
SKU: 1642
Availability: InStock

Price range: ₹15,000.00 through ₹40,000.00

+ Free Shipping

Specifications

Wind speed Sensor – 3 Cup Anemometer
Sensing – 3 cup assembly mounted on friction free shaft and coupled to a chopper
Starting threshold – 0.2 meters/sec
Range – 0 to 70 meters/sec
Operating temp -50 Degrees C to +65 Degrees C **
Output – TTL pulses output proportional to wind speed.Built in line driver to drive long cable > 50 ohms loop resistance.
Accuracy +/-1% of full scale
Diameter of cup – 50 mm
Diameter of cup assembly – 165 mm
Construction of sensor body – Brass housing and stainless – steel shaft

Option

Clear

SKU: N/A Category: Meteorological Instruments

Description

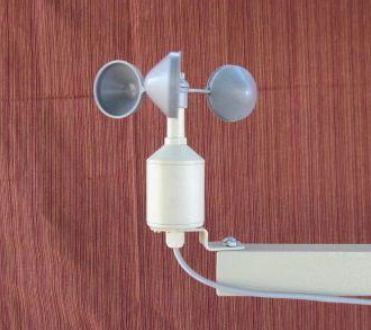

DYNALAB anemometer is a fast response, low threshold electronic anemometer.
When rotated by wind, a chopper on the anemometer shaft interrupts an infra-red-light source, generating pulses from a photo transistor.
The signal is amplified and fed through a line driver.
The frequency is proportional to wind speed.
The anemometer comes with 10meters of shielded cable.

Option	0-5 V, Modbus RS485
